WINNEO Ultra-precision Laser Plate-making Machine

1

Get A Free Quote

Talk With Expert

Product categories

New products

Product Details

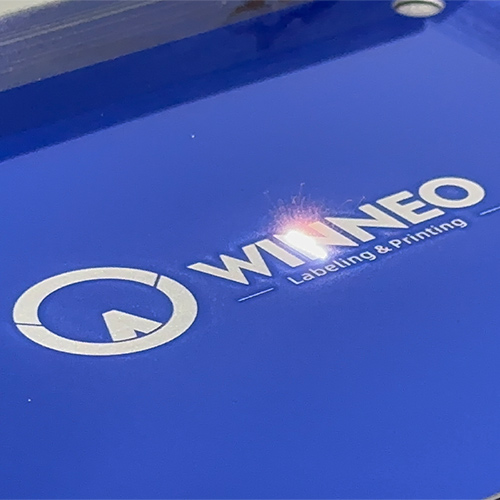

WINNEO brings Laser Etching technology from the optical field into the pad printing industry. By directly applying high-energy focused lasers to metal surfaces, it achieves micron-level precision plate making, offering a new-generation solution for precision metal plate fabrication in the pad printing sector.

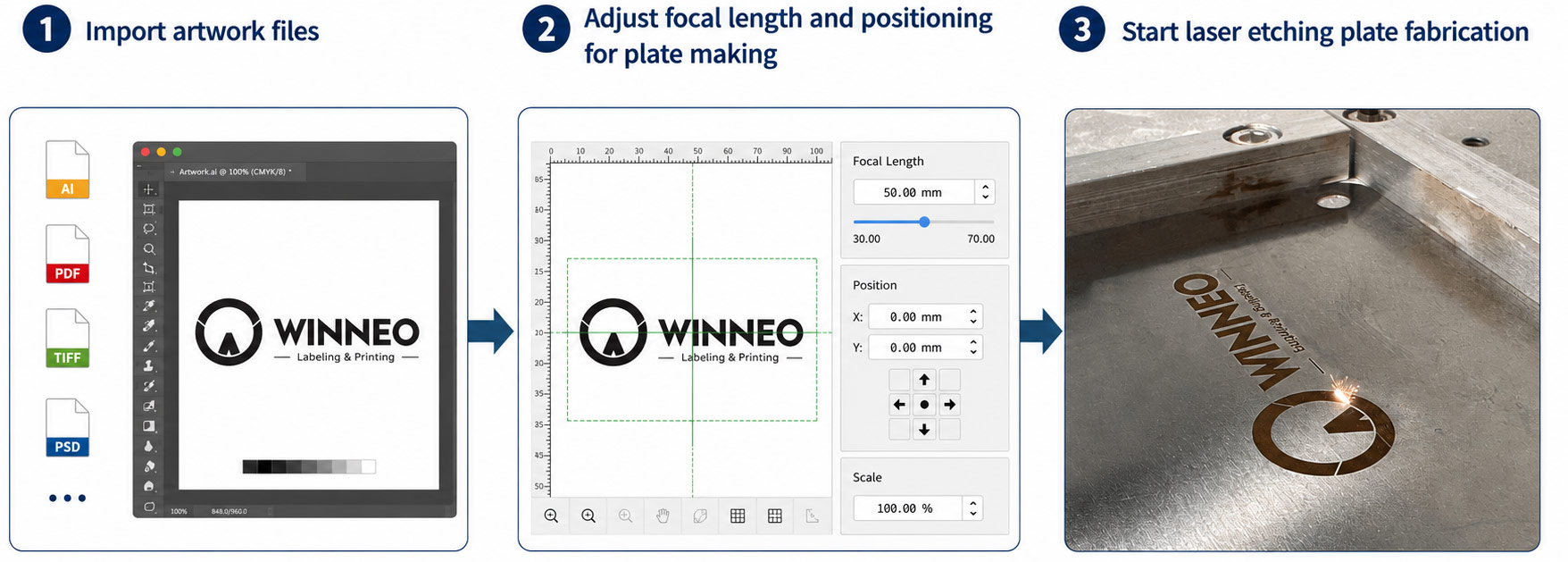

3-step forming, 10-min delivery

Simplify the plate-making process. From artwork confirmation to finished etching, simple patterns take merely 10 minutes. It drastically cuts plate-making lead time and enables quick response to urgent orders.

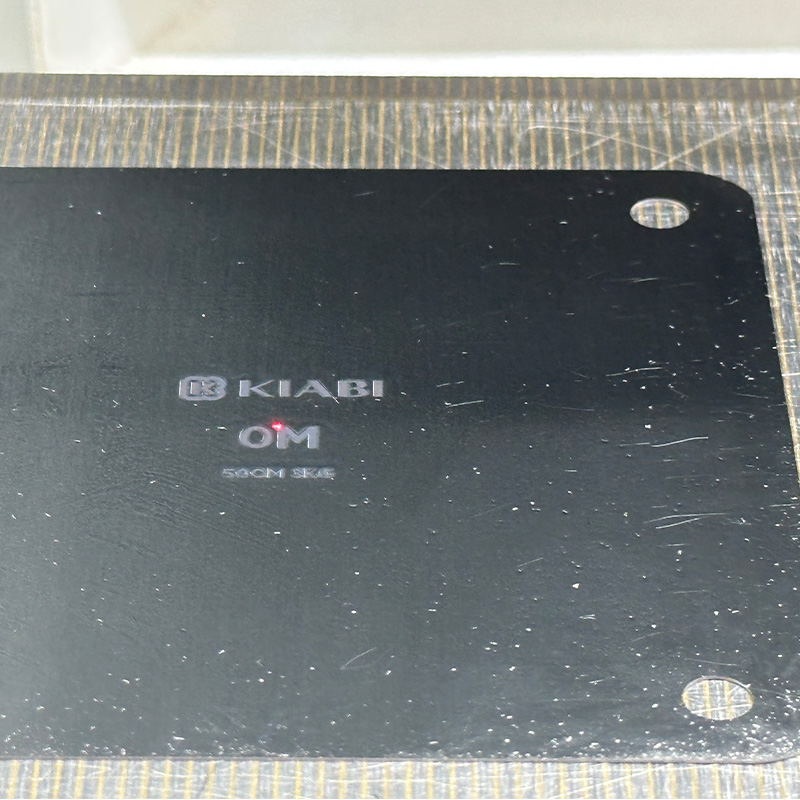

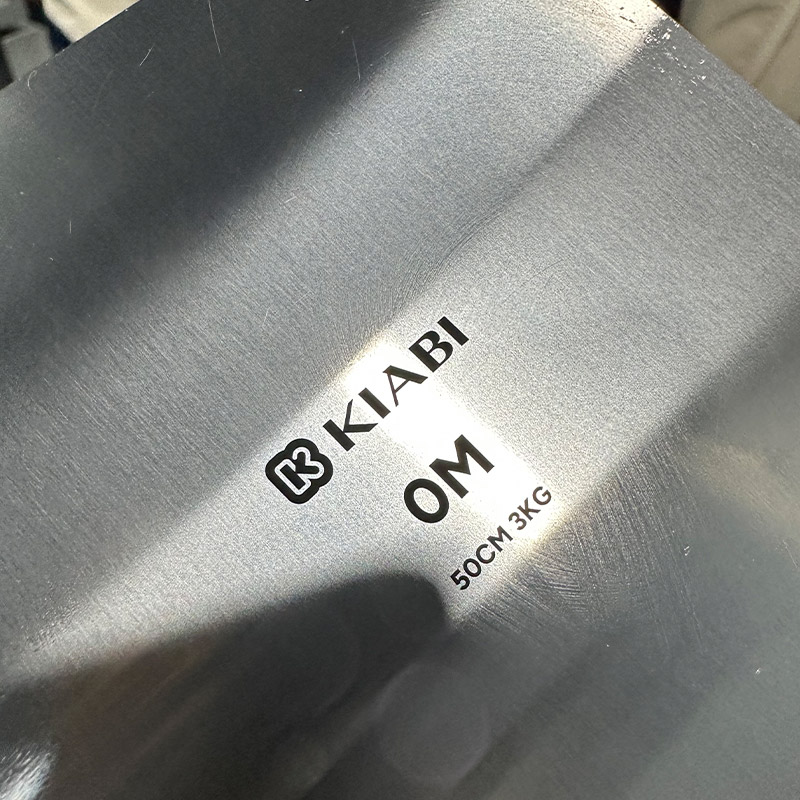

Micron-level precision, perfect control over every detail

Equipped with advanced dedicated lasers and high-precision high-speed galvanometers, the finished products feature burr-free surfaces and intact patterns with no broken lines.

Pattern: Flat and clean base with smooth outline edges.

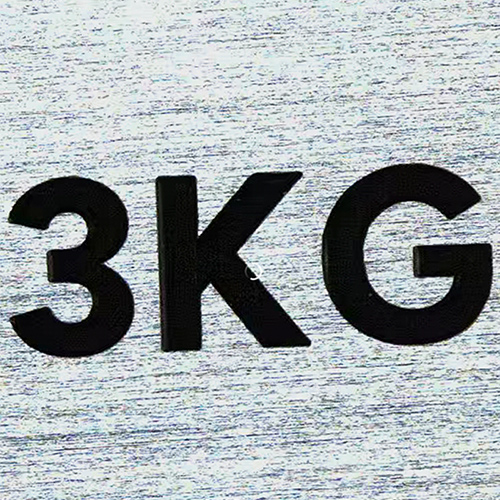

Font: Slim and distinct with sharp neat edges and corners.

Curves: Smooth and fluent with controllable dot distribution.

Depth: Precisely controlled, depth error less than 0.002mm

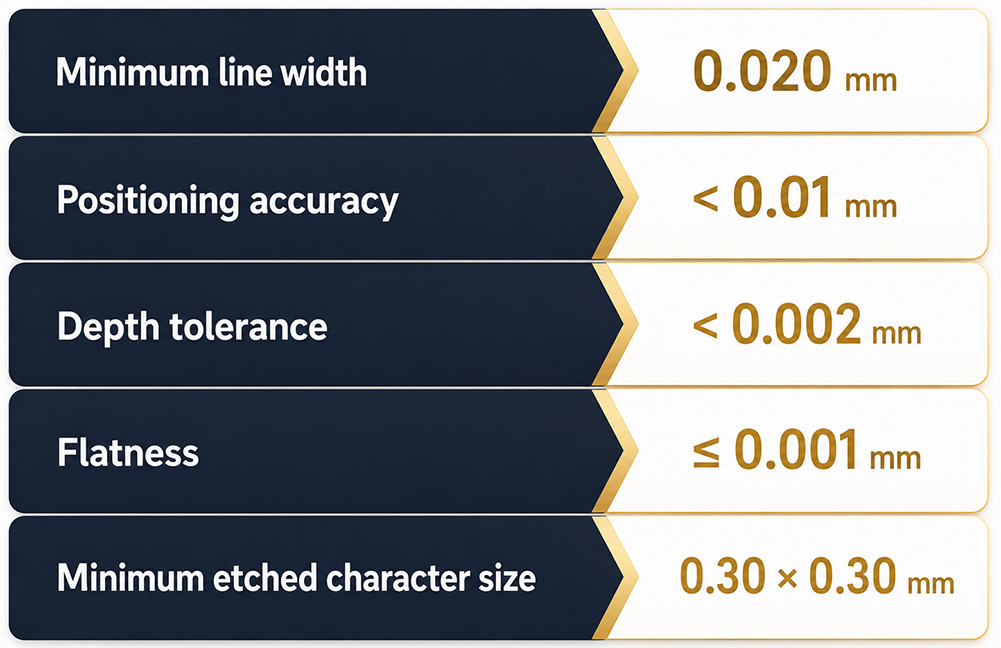

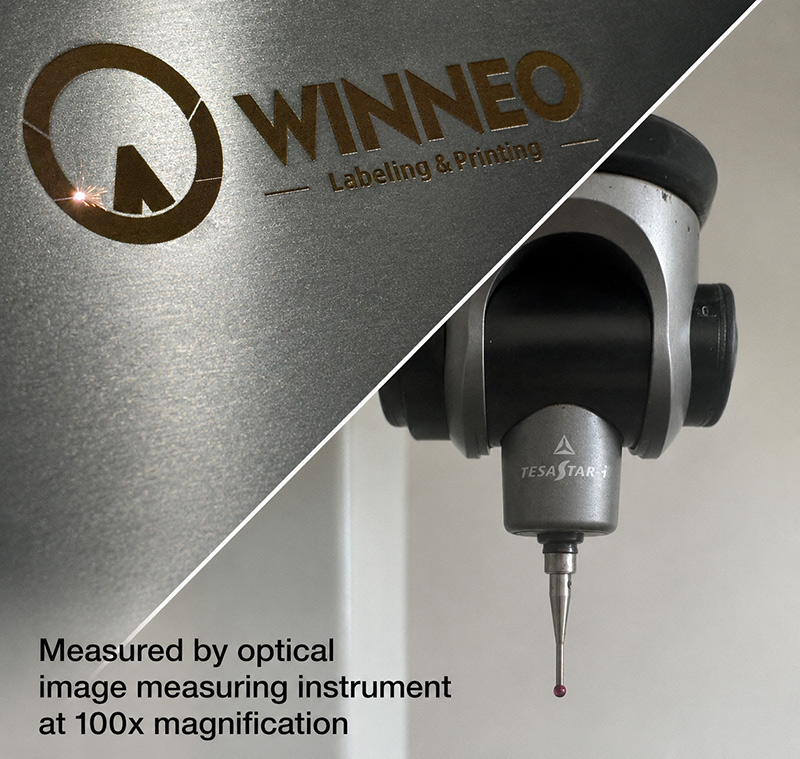

Data verifies superior quality

Backed by industry-leading precision specs, our laser plate maker delivers consistent, high-definition results for all your pad printing plate making needs

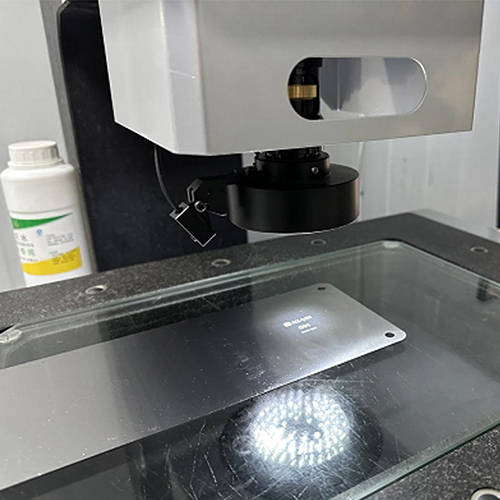

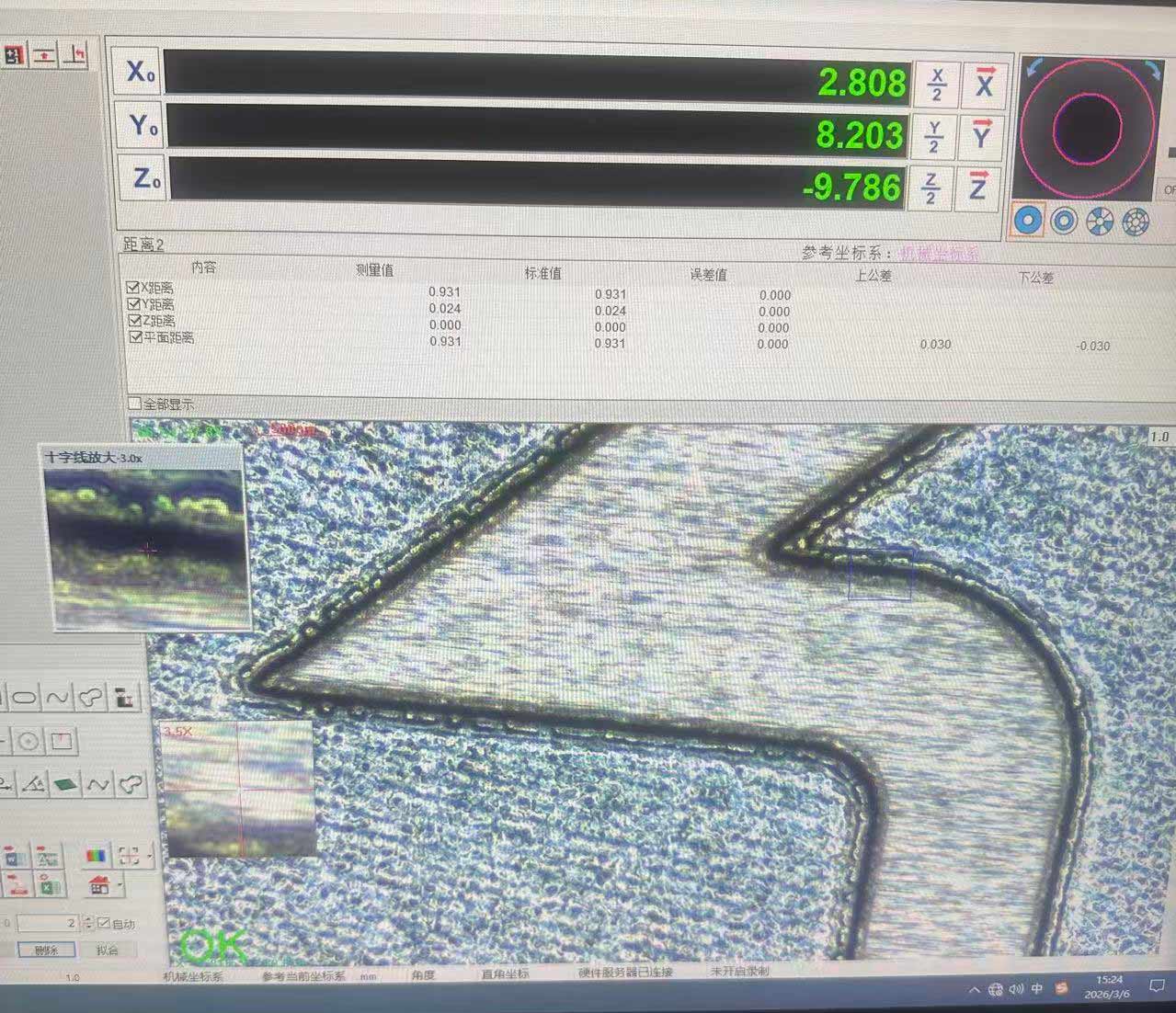

Professional Inspection Prior to Release

2D Vision Inspection and Plate Preparation: Verifying dimensional and shape consistency, and assessing whether the condition of the bottom surface meets customization requirements—specifically, whether it is smooth or possesses a textured finish.

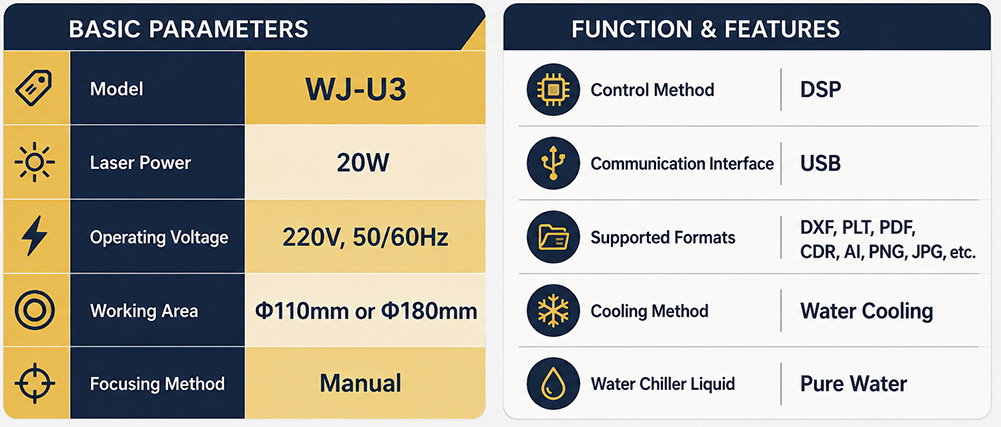

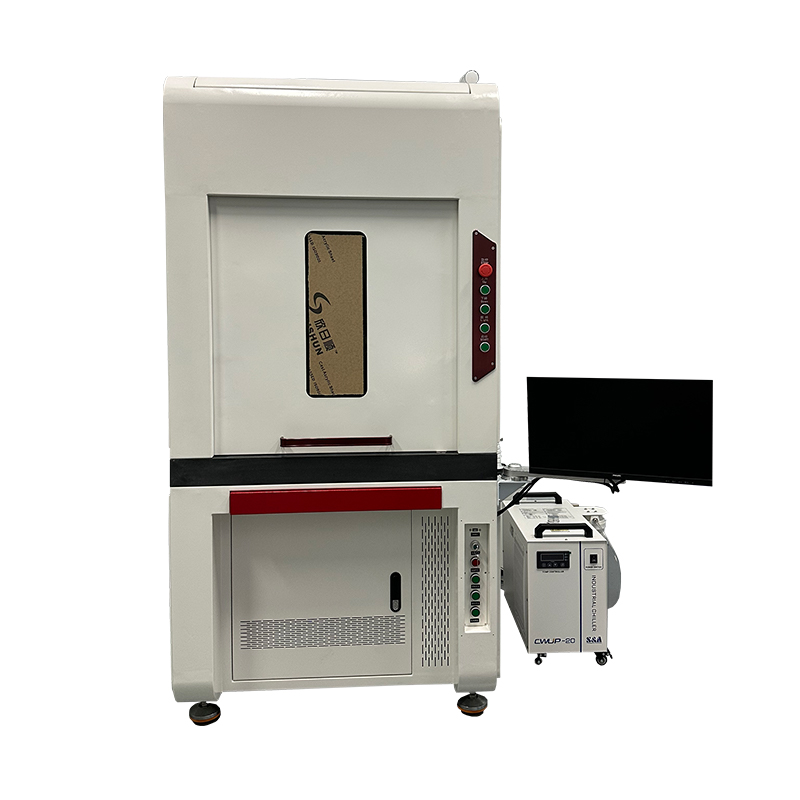

Machine Technical Specifications

Intelligent operation—even beginners can get started with ease

The process is fully machine-controlled without human subjective interference, delivering consistent and reliable quality. Employees can operate after basic training, reducing reliance on professional experience.

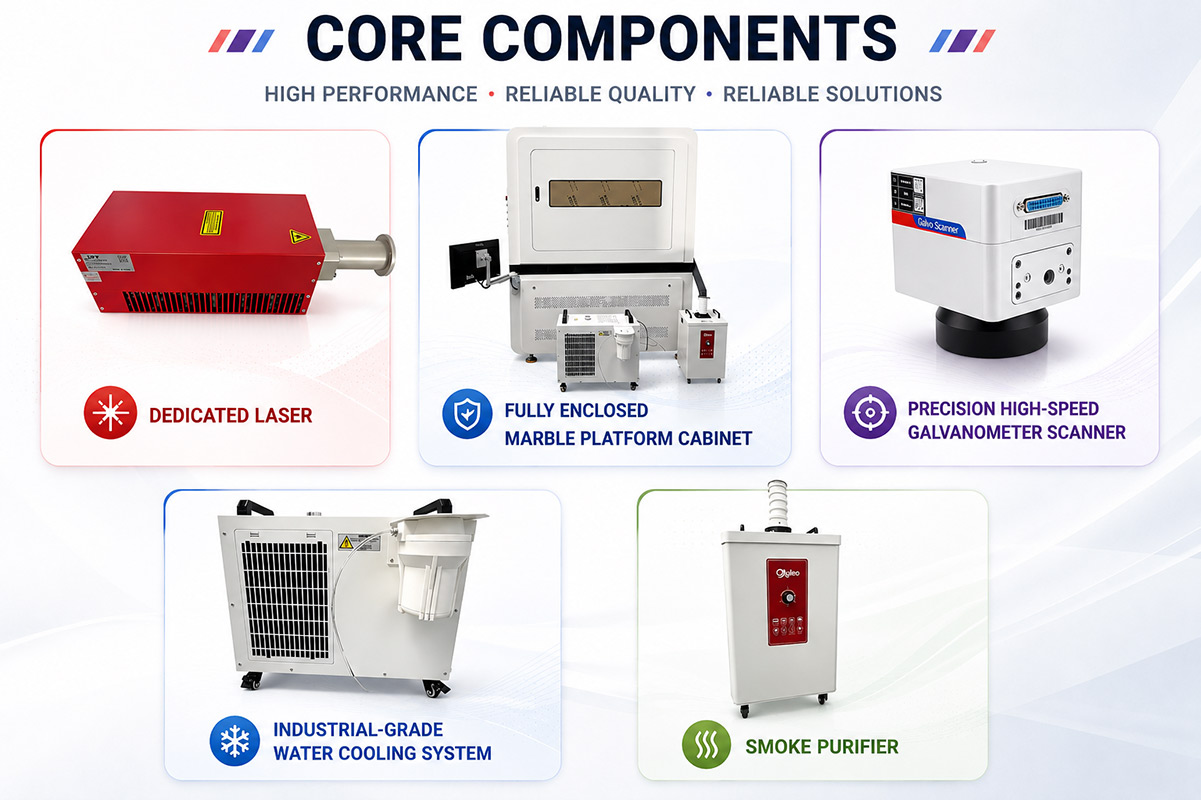

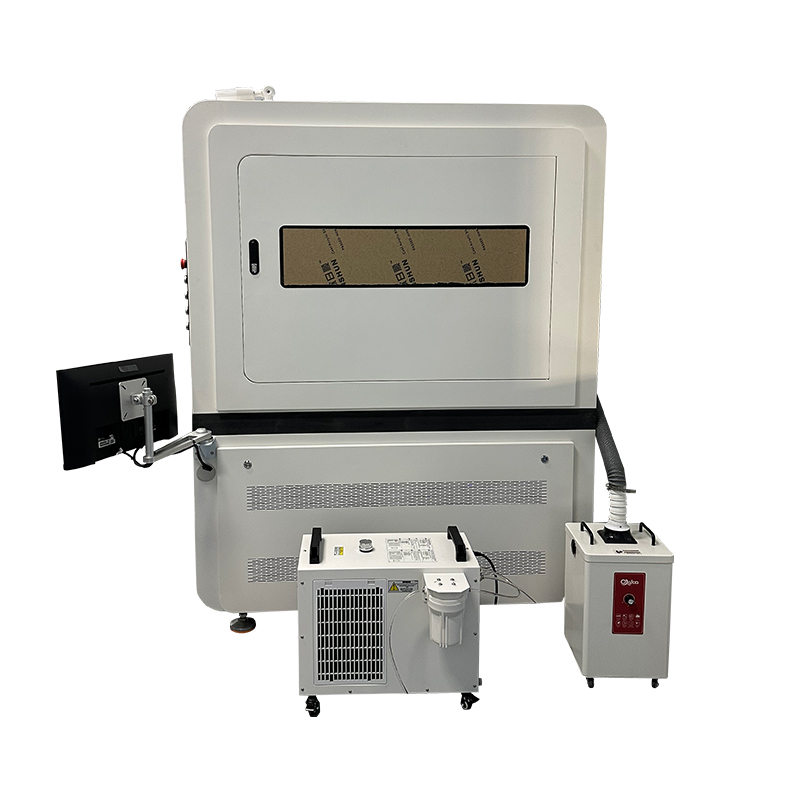

Base Structure: High-rigidity fully enclosed heavy-duty machine frame built with natural marble, ensuring high-speed and high-precision operation.

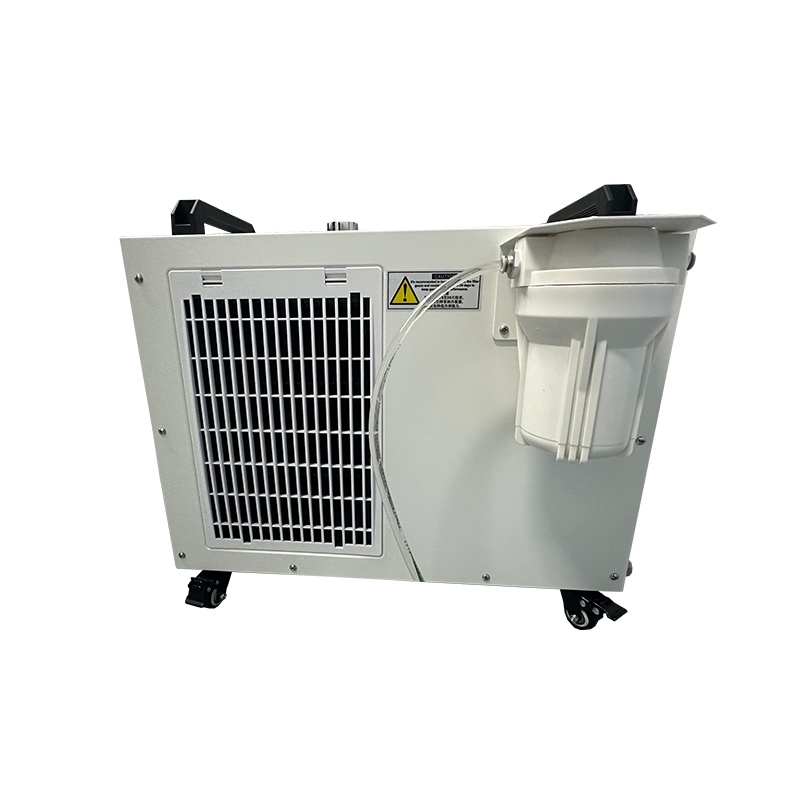

Cooling System: Industrial water cooling system using purified water, stable performance and maintenance-free.

Control System: Dedicated laser control system, industrial computer and DSP control mode.

One machine handles diverse materials

Powerful laser compatibility meets diverse plate-making demands. It can process any planar pattern and conduct precise etching on various metal materials.

Applicable materials:

Bearing steel, Thick steel plate, Oil steel plate, Chromium steel plate, WINNEO new material steel plate, Carbon steel plate, Stainless steel plate, Aluminum sheet, Ceramic plate, etc.

*Contact WINNEO for detailed product solutions

FAQ

Q1: Can our laser plate maker work with the laser pad printing plates we commonly use? Such as 10mm pad printing steel plates, 0.5mm pad printing steel sheets, 0.95mm / 0.5mm pad printing aluminum sheets?
A:Fully compatible! The machine is specially optimized for these 4 mainstream pad printing plates you mentioned. Whether it's laser engraving on 10mm thick steel plates, or fine plate making in printing on 0.5mm thin steel sheets and aluminum sheets, it can be perfectly matched with no need to change the machine model or replace extra accessories, ready to use directly. (Note: The desktop laser engraver only supports aluminum sheets)

Q2: How to choose between the desktop model and the high-precision model? We do small-batch custom pad printing plates with occasional high-precision demands, which one is more cost-effective?

A: It depends on your core needs:

① For small-batch, multi-batch production, compact footprint and easy operation, choose the desktop laser engraver — it has a small footprint (fits on an office desk), ready to use right after power-on, high cost performance, and fully meets your daily plate making in printing demands.

② For high-precision patterns (such as thin lines, tiny fonts) and mass production needs, choose the high-precision model — it features higher positioning accuracy and excellent plate making consistency, ideal for long-term stable mass production with laser engraving machine as the core equipment.

Q3: We used to use chemical etching process. Do we need to replace our existing pad printing plates after switching to the laser plate maker?

A: No need! It is fully compatible with your existing 10mm steel plates, 0.5mm steel sheets, 0.95mm / 0.5mm aluminum sheets. No need to purchase new plates, you only need to adjust the parameters to get started, which reduces the replacement cost and allows you to quickly switch to laser etching machine workflow.

Q4: Besides pad printing plates, can it engrave other metal materials, such as stainless steel sheets and copper sheets?

A: Absolutely! The fiber laser engraving machine is natively compatible with various metal plates. In addition to your commonly used pad printing steel and aluminum sheets, it can also engrave stainless steel, copper sheets and more, supporting multiple application scenarios. One laser engraver meets multiple plate making in printing needs and improves equipment utilization.

Q5: For pad printing plates of different thicknesses (0.5mm-10mm), do we need to adjust parameters frequently? Will the operation be very complicated?

A: No frequent adjustment needed! The device has a built-in preset parameter library, which can save the optimal parameters for common plates such as 10mm steel plates, 0.5mm steel sheets, 0.95mm / 0.5mm aluminum sheets. When switching plates, you only need to select the corresponding parameters on the interface, call them with one click, and adjust the focal length. No need for repeated manual debugging, saving a lot of operation time for your daily laser engraving machine for metal production.
